Switch Module (RELAY) DCM 010

The DCM 010 is used to control DC powered devices with high capacities in control and switch cabinets. It is controlled via an external potential-free contact (thermostat or hygrostat), which is connected between terminal 3 and 4. It must be ensured that the external contact is suitable to switch the required signal current without any problems.

Talk to Our Experts Download Datasheet

  • High DC switching capacity
  • Variety of applications
  • Wide DC voltage range
  • Simple connection

  • High DC switching capacity
  • Variety of applications
  • Wide DC voltage range
  • Simple connection

  • Switching difference (humidity) : 4 % RH (±1 % tolerance) at +77 °F (+25 °C), 50 % RH
  • Control contact – signal current : 3 mA at DC 20 V / 4.5 mA at DC 24 V, 14 mA at DC 48 V / 17 mA at DC 56 V
  • Contact type : NO - normally open (MOSFET
  • Dimensions : 3.7 x 2.1 x 1.7" (93 x 53 x 44 mm)
  • Connection: : 6-pole terminal: stranded wire1 AWG 16 (1.5 mm²); max. AWG 12 (2.5 mm²)

Housing: : Plastic, UL 94V-0, grey (bicolor)

Storage temperature: : -40 to +176 °F (-40 to +80 °C)

Protection type/Protection class: : IP20

Approvals : UL File No. E164102, VDE, EAC

See Related Products

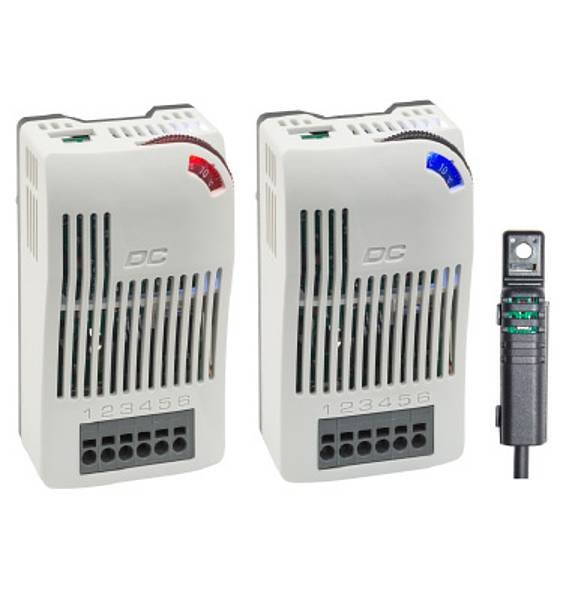

ElectronicThermostat DCT 010

ElectronicThermostat DCT 010

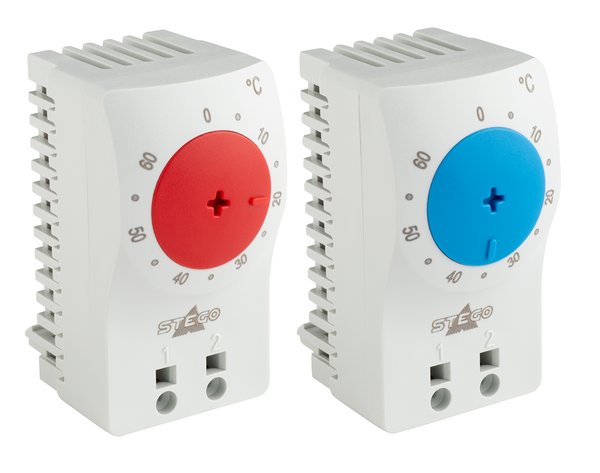

Small Thermostat KTO 111 / KTS 111

Small Thermostat KTO 111 / KTS 111

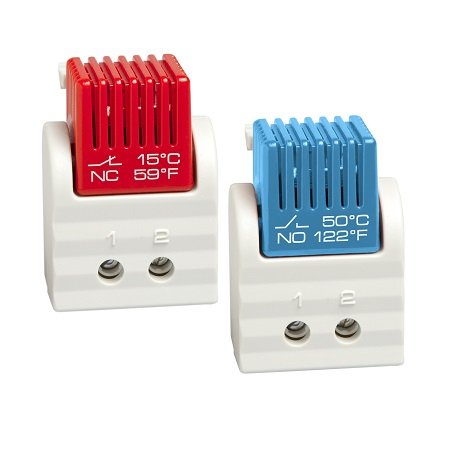

Hazardous Area Thermostat REx 011

Hazardous Area Thermostat REx 011

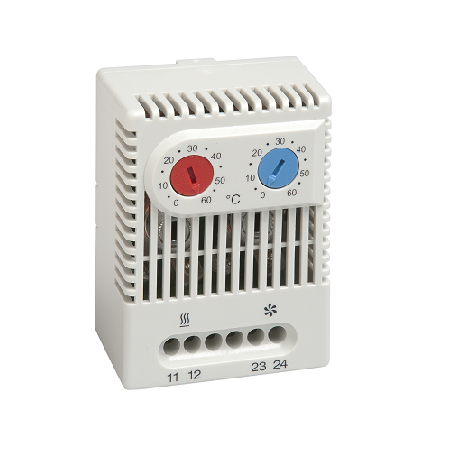

Dual Thermostat ZR011
