DES 24M

The DES 24M splittable frame allows up to 40 cables with or without connector or  one or two cables up to 35mm diameter to  pass through electric cabinet or machines panels. The small and big grommets can be freely  positioned inside the frame. The DES 24M frame is the base structure for the expandable MX version

Talk to Our Experts Download Datasheet

  • Multiple configurations with small and large grommets
  • Frame screws in AISI304 Stainless Steel
  • IP54 protection
  • Strain relief acc. to  EN 62444
  • Robust construction IK10
  • External gasket included
  • Threaded inserts version on request

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157

See Related Products

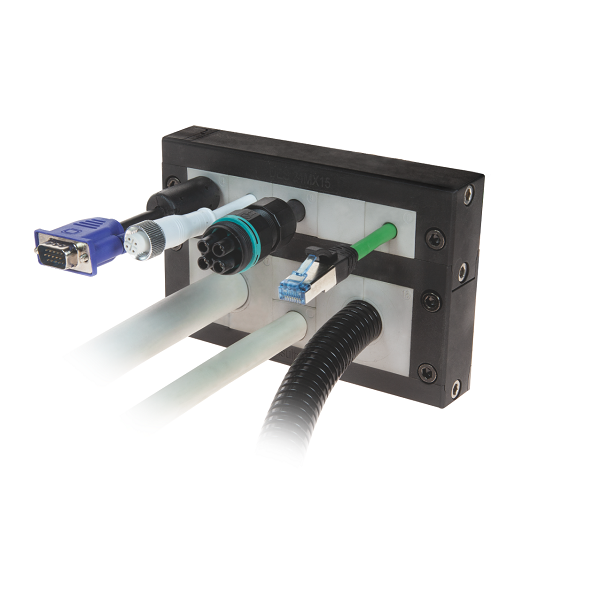

DES 24MX15

DES 24MX15

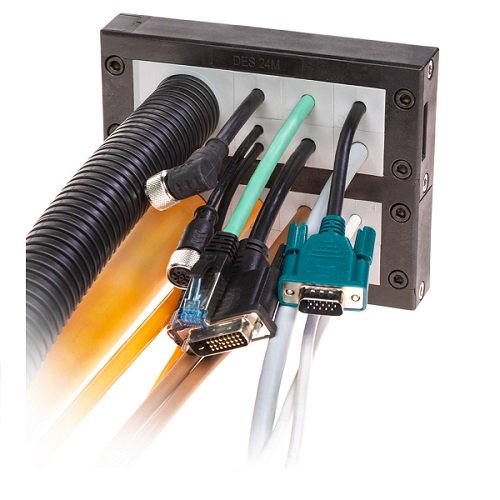

DES 24MX

DES 24MX

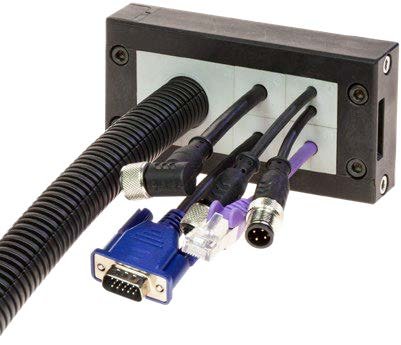

DES 16M

DES 16M

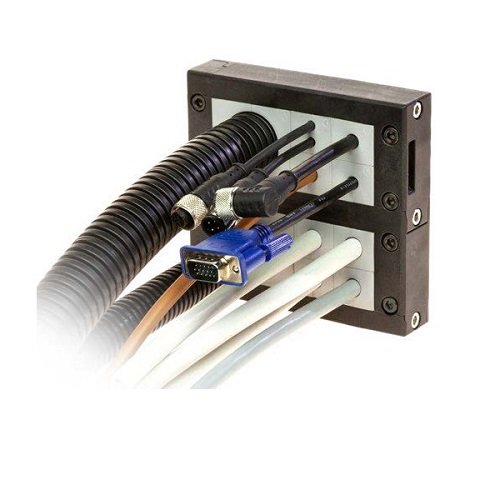

DES 16MX
